4 POST LIFTS
4P14
4015 OPEN FRONT
4015 OPEN FRONT

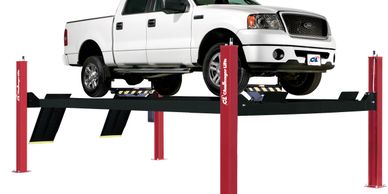

Challenger’s 14,000 lb. closed-front drive-on 4-post lift features a low approach angle and wide runways for easy approach. It also has one of the highest rise in the industry and durable column construction. We designed the 4P14 for versatility, with louvered approach ramps as well as in two lengths. A range of optional accessories can help you accommodate just about anything that comes in for service.
ALI/ETL certified.
4015 OPEN FRONT
4015 OPEN FRONT
4015 OPEN FRONT

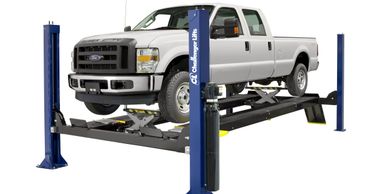

Challenger’s 4015 4-post series lifts have 15,000 lb. capacity and are available in several configurations. We offer general service flat deck or dedicated alignment capabilities. Choose between open or closed front models to fit your service needs.
ALI/ETL certified.
44012 LUBE RACK
4015 OPEN FRONT
4015CLOSED FRONT
Challenger’s model 44012 4-post lube rack is optimized for efficiency. The rack allows one person to check fluids by standing on the diamond-plate catwalk while another is underneath the vehicle. We also offer lube racks in a dual configuration. This model features a staircase and catwalk that connects two lube racks.
Specifications
Model Number44012LR44012DLR Lifting Capacity12,000 lb.12,000 lb. Max. Wheelbase216” 216” Rise Height77.75” 77.75” Length Overall22’ 6.25” 22’ 0.75” Width Overall12’ 4.25”26’ 9” Height Overall100.5”144.5” Inside Columns133” 133” Between Columns221” 221” Height of Columns84.75”84.75” Width of Runways20.5”20.5” Height of Runways6.75”6.75” Width Between Runways42.5”42.5” Motor2HP2HP Voltage (1 Phase Std.)1208-230v208-230v Speed or Rise80 s80 s Min. Recomm. Bay Size15’ 6” x 25’ 30’ x 25’
4015CLOSED FRONT
4015CLOSED FRONT
4015CLOSED FRONT
.png/:/rs=w:388,h:194,cg:true,m/cr=w:388,h:194)
Challenger’s 4015 4-post series lifts have 15,000 lb. capacity and are available in several configurations. We offer general service flat deck or dedicated alignment capabilities. Choose between open or closed front models to fit your service needs.
ALI/ETL certified.
44018 18K
4015CLOSED FRONT
44018 18K
Challenger’s 18,000 lb. capacity medium-duty 4-post is great for shops servicing light- and medium-duty vehicles. The 18000 features leaf chains and sealed roller bearings. We offer general service or alignment models. The alignment package includes two 9,000 lb. capacity rolling jacks and an internal airline kit for dual jack operation in addition to stainless steel turning radius gauges.
CL4P7 / 9
4015CLOSED FRONT
44018 18K
Customers have questions, you have answers. Display the most frequently asked questions, so everybody benefits.
HOBBY AND STORAGE LIFTS
CL4P7 HOBBY LIFT CL4P9

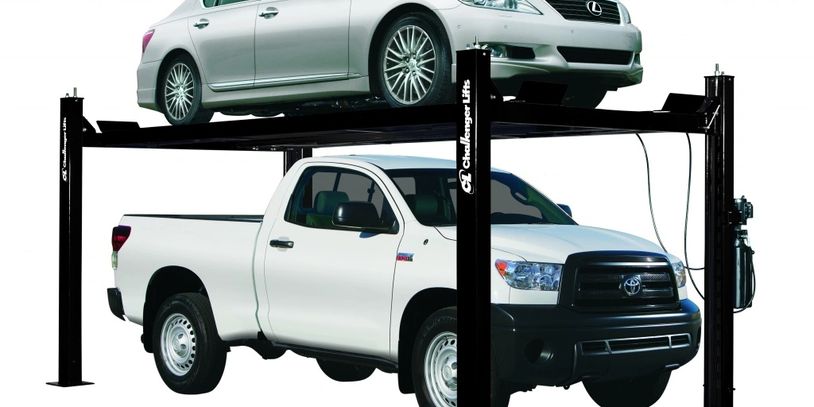

Challenger’s CL4P7 7,000 lb. capacity and CL4P9 9,000 lb. capacity 4-post lift were designed with versatility in mind. From home enthusiast and commercial storage applications to light duty general service applications, these lifts complement your service needs and are loaded with real benefits. They are essential for the “do it yourself” home garage, providing the best of both worlds — store a vehicle up top and below with up to 80” of clearance when the lift is fully raised, or use this lift to service your vehicles.
